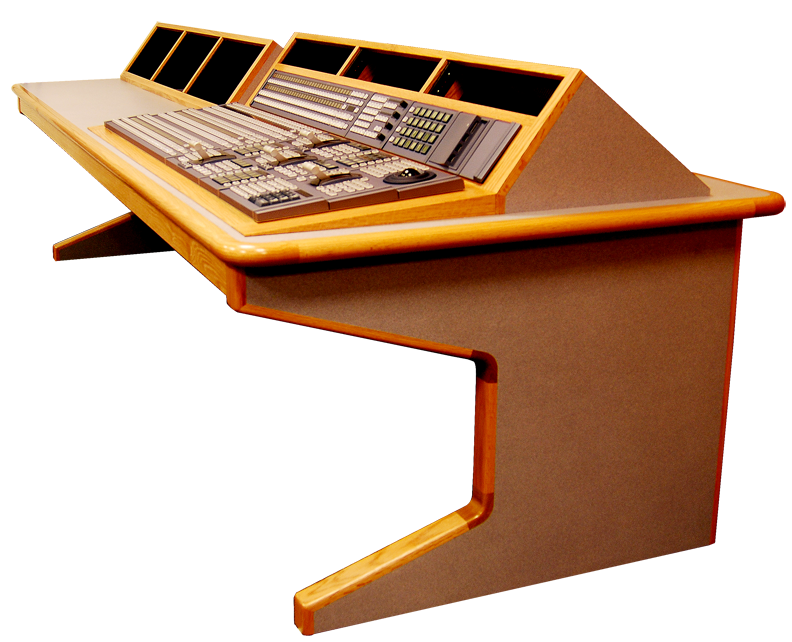

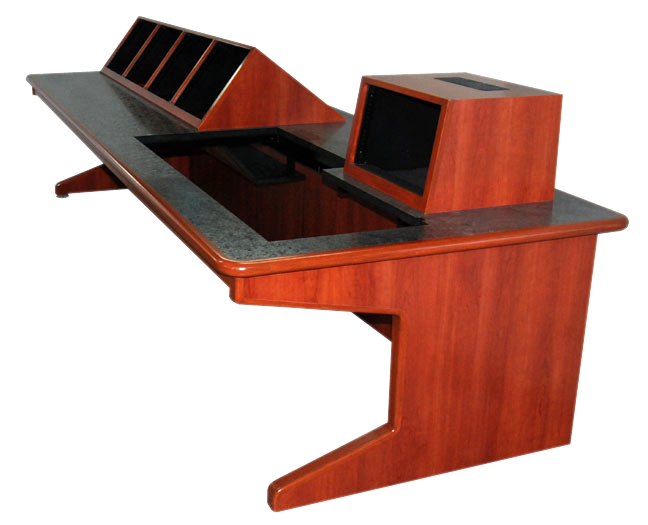

Switcher may be located LEFT CENTER or RIGHT

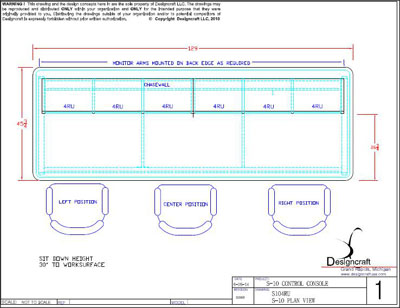

S-104RU (see alternate plans) Upper racks can be specified no.of RU's - Sloped or Flat Tops
S-104RU (see alternate plans) Upper racks can be specified no.of RU's - Sloped or Flat Tops
S-104RU (see alternate plans) Upper racks can be specified no.of RU's - Sloped or Flat Tops

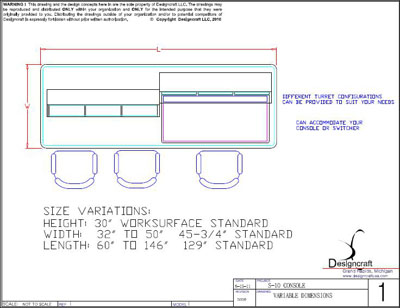

Flexible Rackmount Options - Custom Sizes

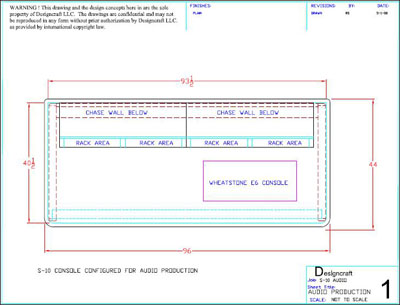

Matching Auxiliary or Audio Desks Available Custom Sizes

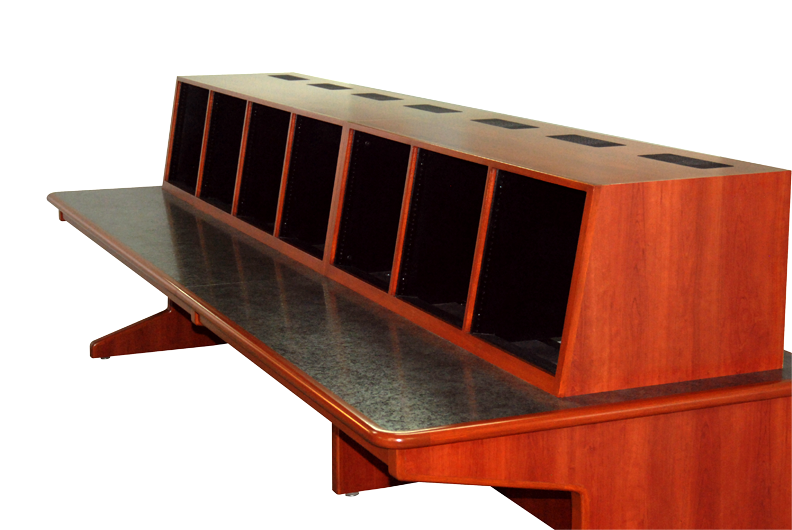

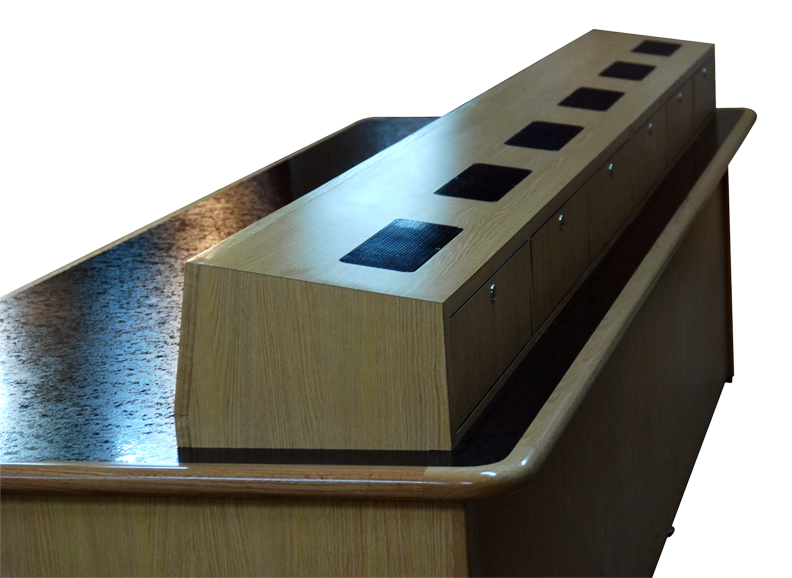

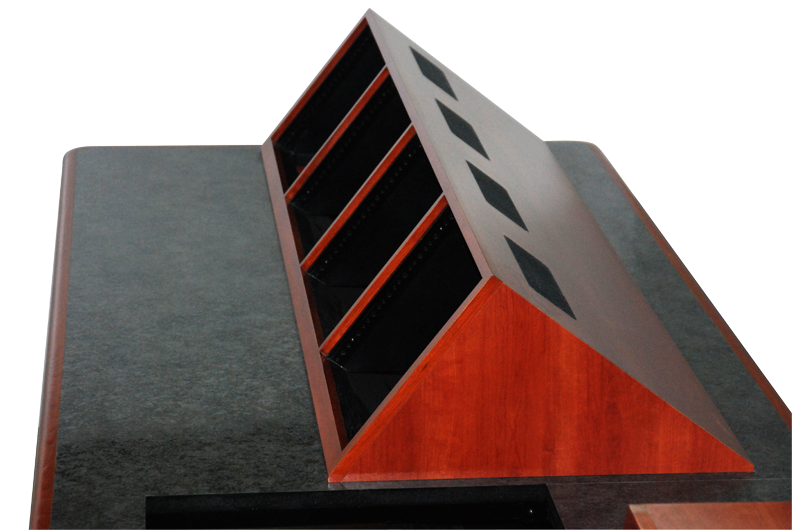

Showing Sloped Rack Bays 6RU

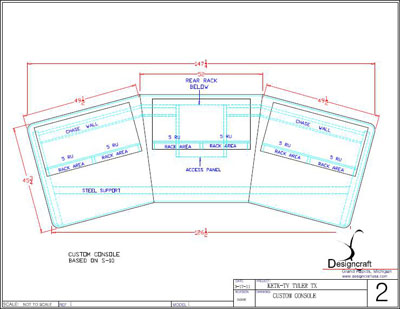

Custom switcher and rack configurations

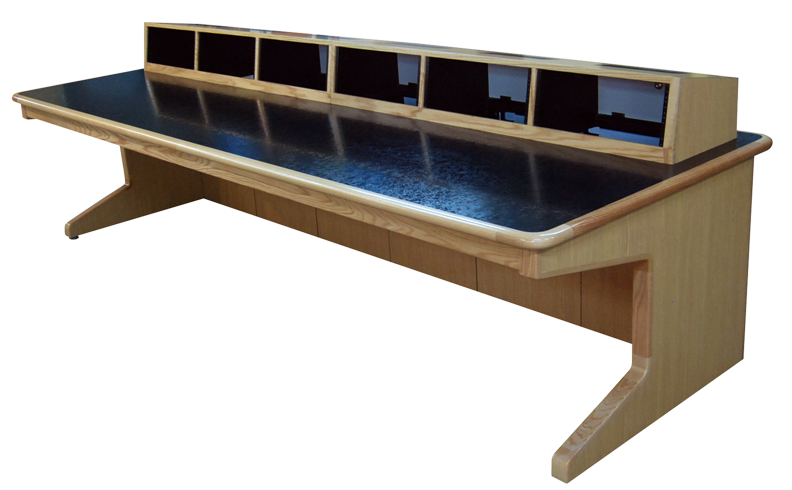

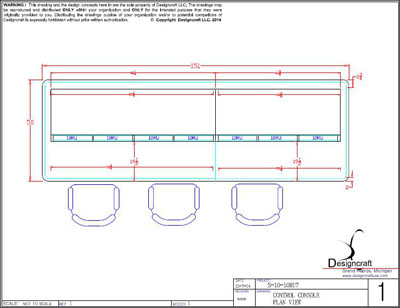

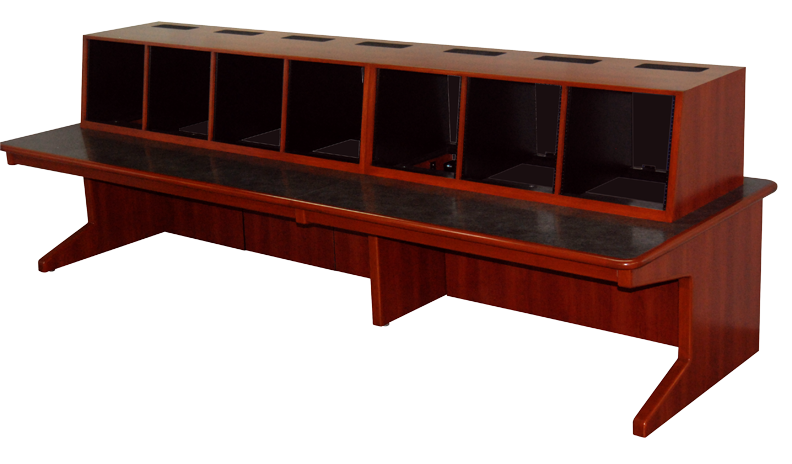

S-10-10RU7 (see Alternate Plans) Full Length Racks 10RU (2-12RU available)
S-10-10RU7 (see Alternate Plans) Full Length Racks 10RU (2-12RU available)
S-10-10RU7 (see Alternate Plans) Full Length Racks 10RU (2-12RU available)

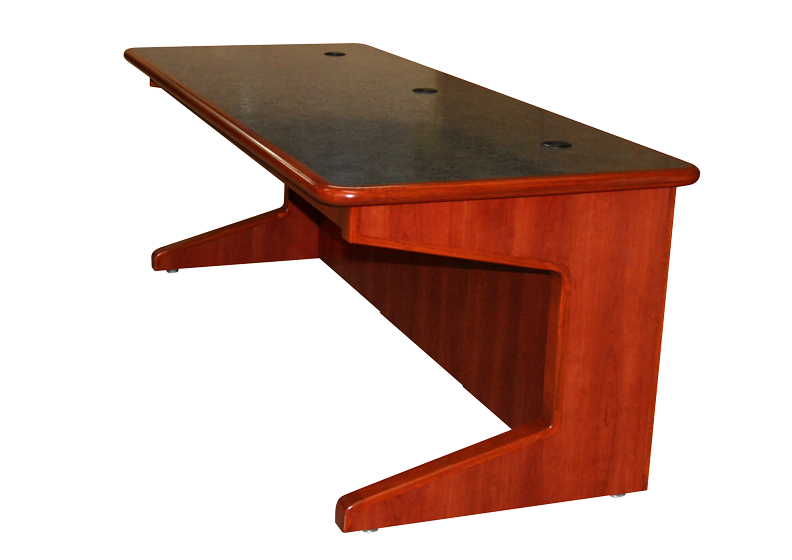

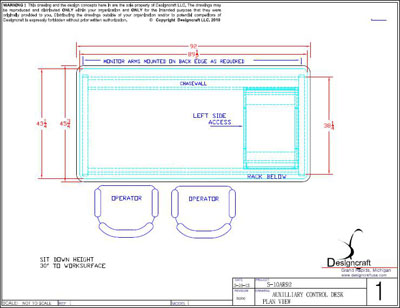

Matching Auxiliary or Audio Desks Available Custom Sizes
Matching Auxiliary or Audio Desks Available Custom Sizes

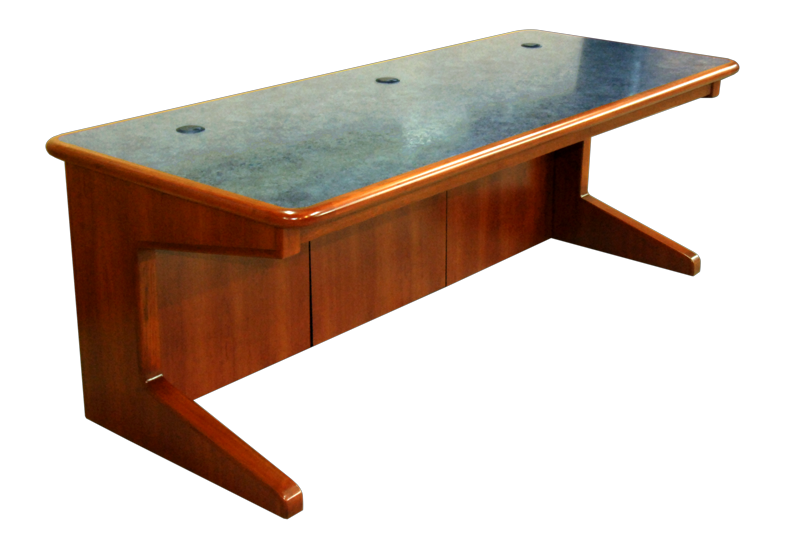

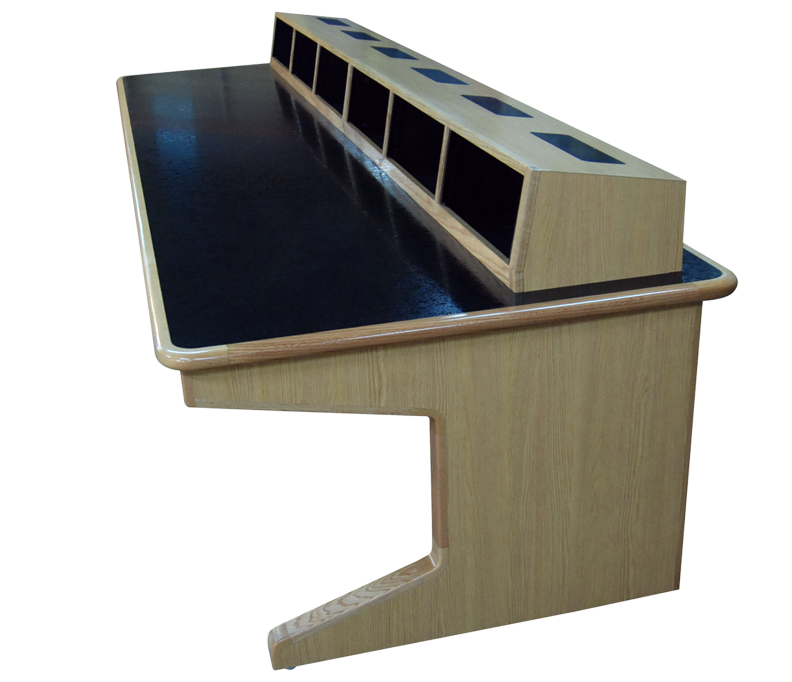

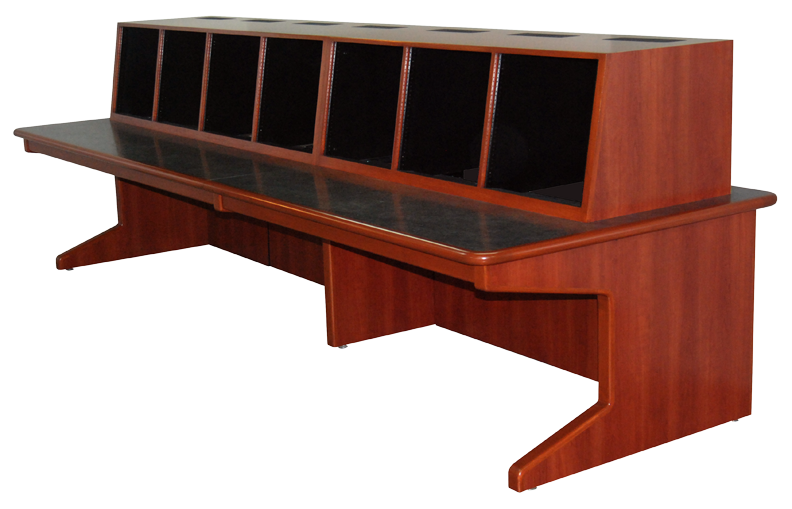

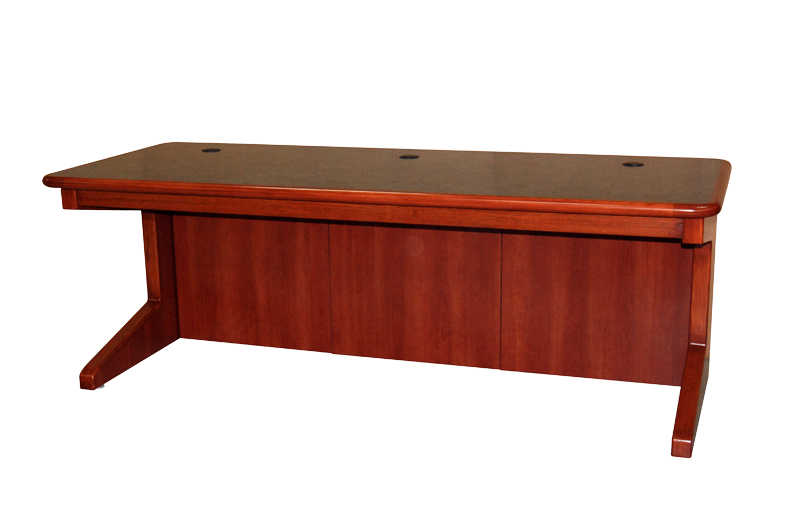

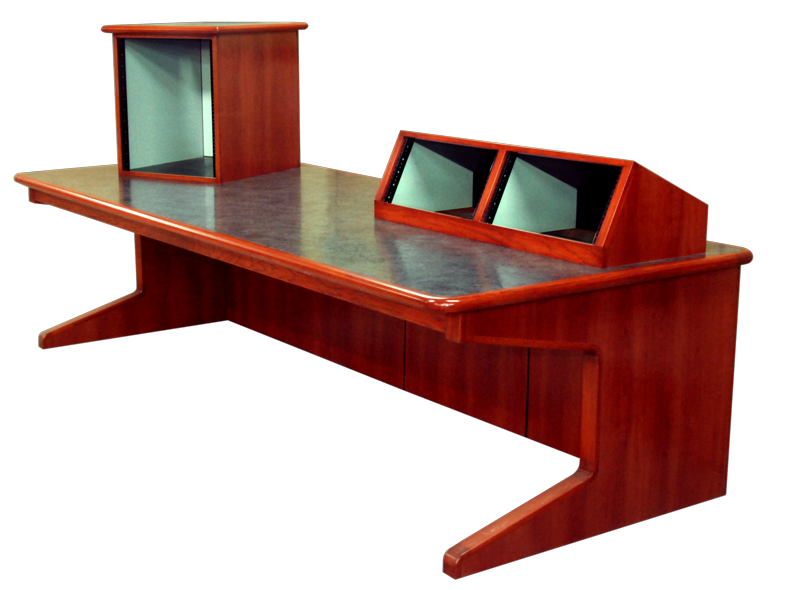

S-10 Production Console
Television Control Console
The S-10 Television Control Console is available in a range of sizes and configurations.The S-10 is designed to offer flexibility to accomodate various switchers in Left,Center,or Right positions, as well as flexible rack mounting options. Upper equipment rack areas can be sloped or flat top,from 2RU to 12RU. Lower rack areas can be added if desired. Computer monitor arms can be clamped along the back edge of the console and easily mounted in the most convenient locations respective to the operator. The S-10 provides a full length fully concealed chasewall capable of handling all of your concealed cables and clearance for punch blocks if desired. Convenient rear access is provided on back side of switchers in most installations. The S-10 desk is steel reinforced for industry standard durability and quality.
